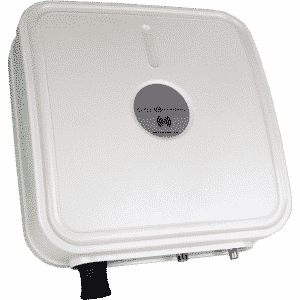

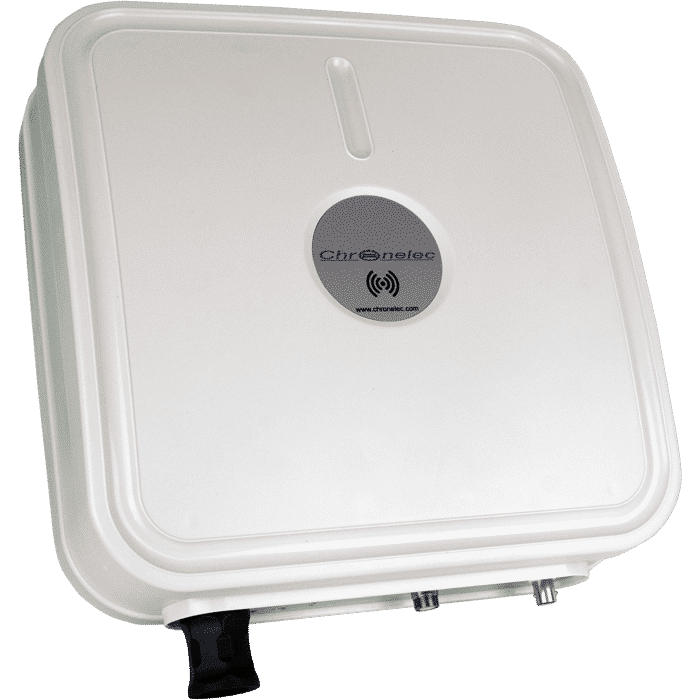

The RF decoder is recommended for sports that do not require a high speed passing.
It is the ideal solution for cycling, triathlon or athletics. The system can also be used for motocross, karting or supermoto.
A loop on the ground activates the RF-I transponder, then the RF decoder receives the information from the transponder by radio.
Radio communication uses a robust protocol to prevent any loss of information.
The RF decoder is able to detect up to 50 transponders in the same hundredth of a second.
The integrated radio modem makes it possible to manage intermediate decoders. Possibility of using the decoder as a main or intermediate decoder.
The GPS receiver ensures a reliable and robust time base.
Features
- Loops management (1 to 8)
- Internal battery (12h autonomy)
- Integrated radio modem
- Integrated GPS
- Clock stability : Oscillator TCXO 0.5 ppm
- Resolution : 0.001 s
- Temperature range : -20 to 55 °C (-4 to 131 °F)
- Dimensions : 130 x 175 x 45 mm (5.1 x 6.9 x 1.8 in)

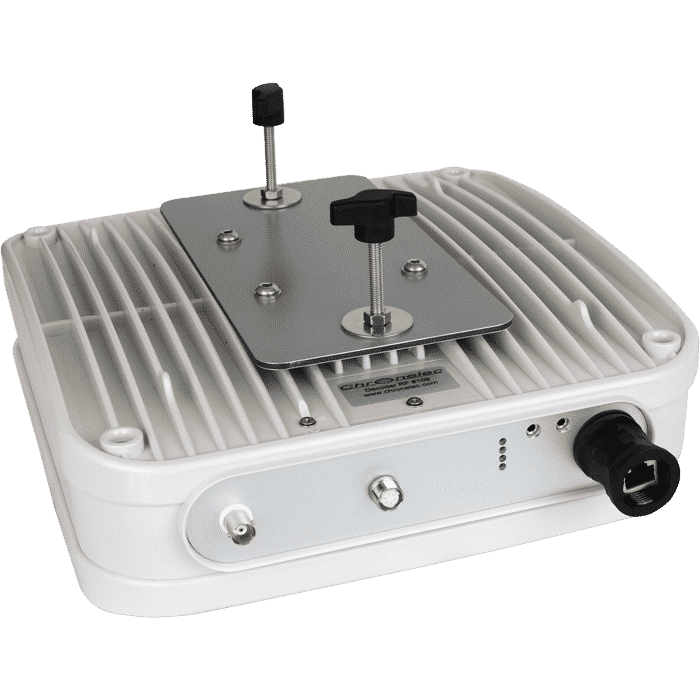

Connections
- Power supply 12 VDC (optional POE)
- 1 loop
- 1 timing impulse (to connect a photocell)
- 1 manual impulse (to simulate a transponder passing)
- 1 audio (beep for each transponder passing)
- 1 Ethernet
